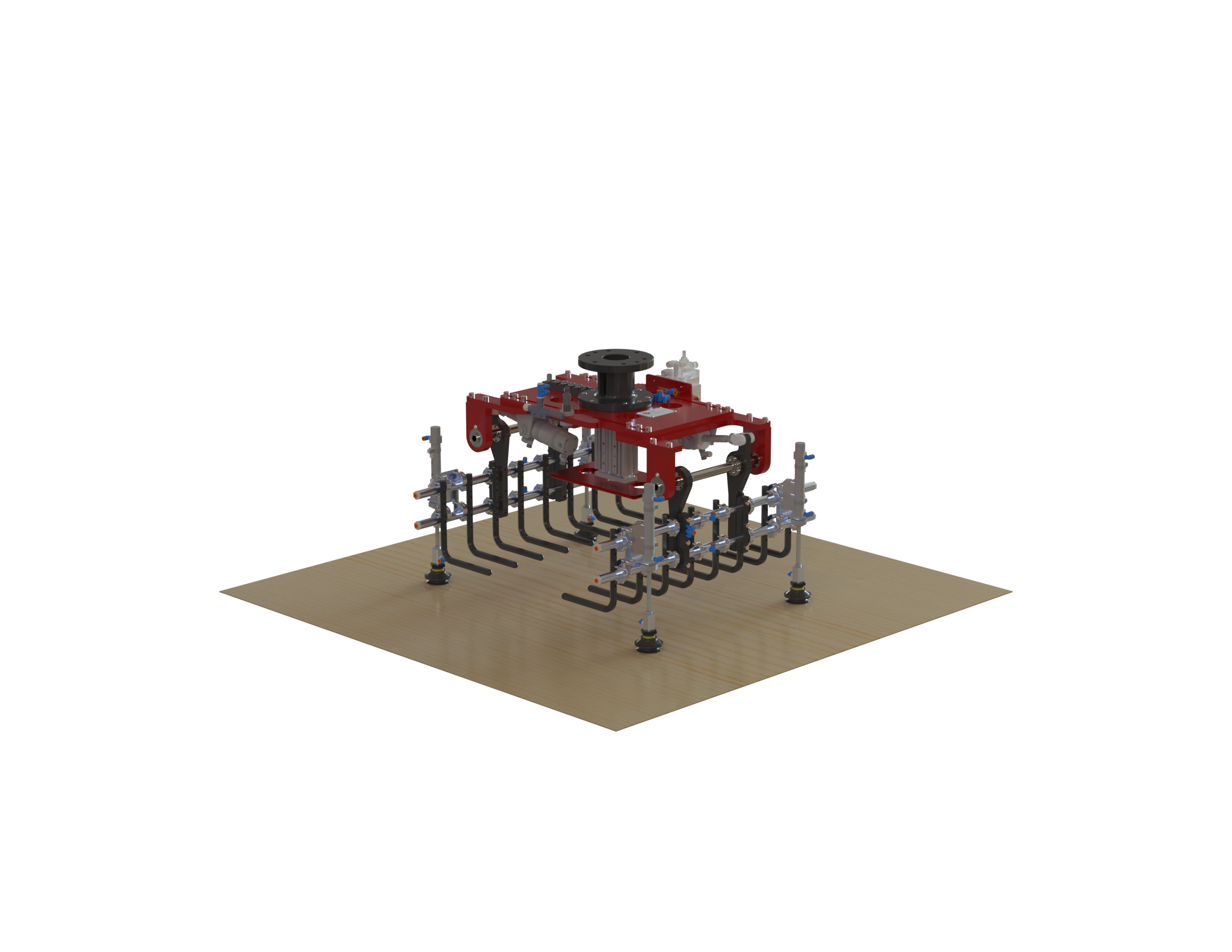

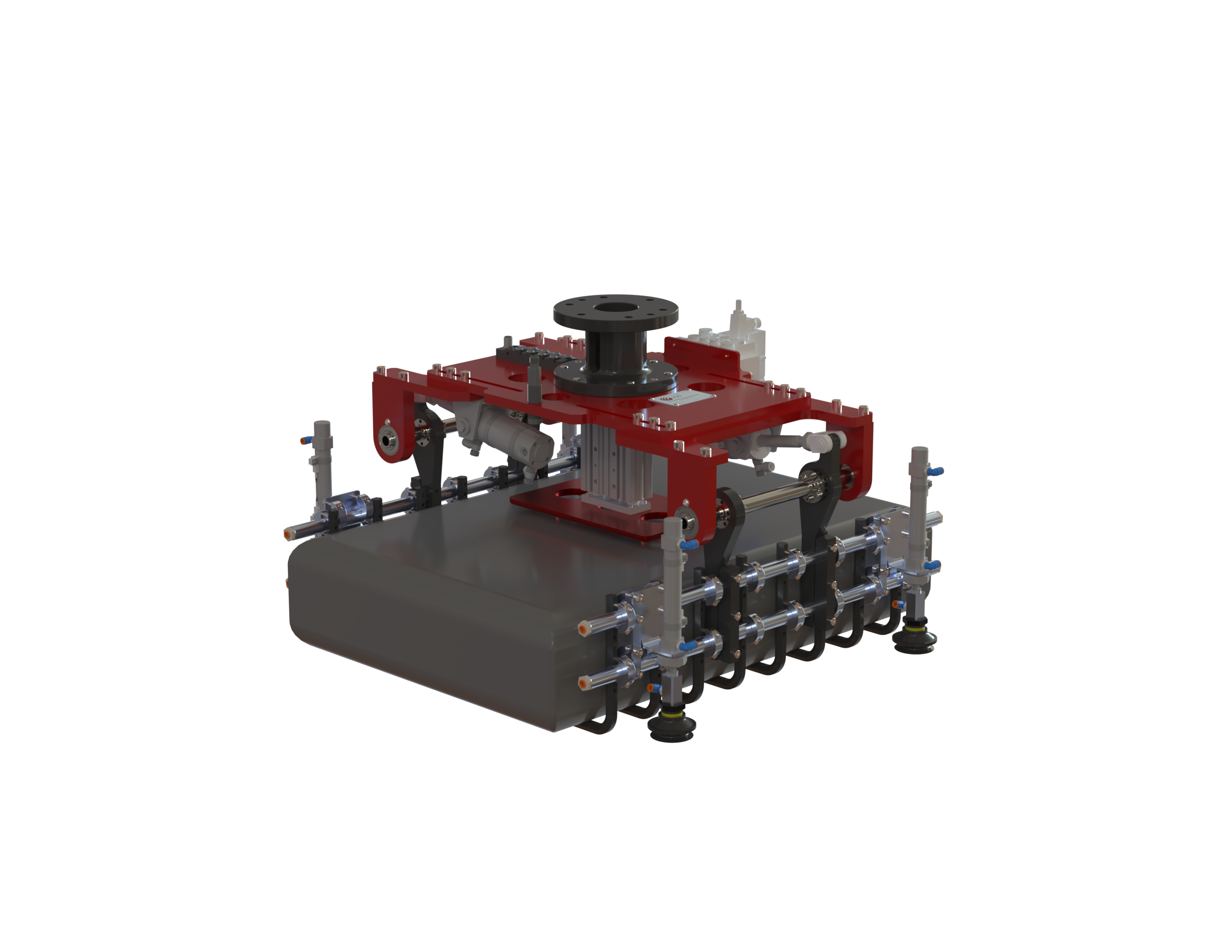

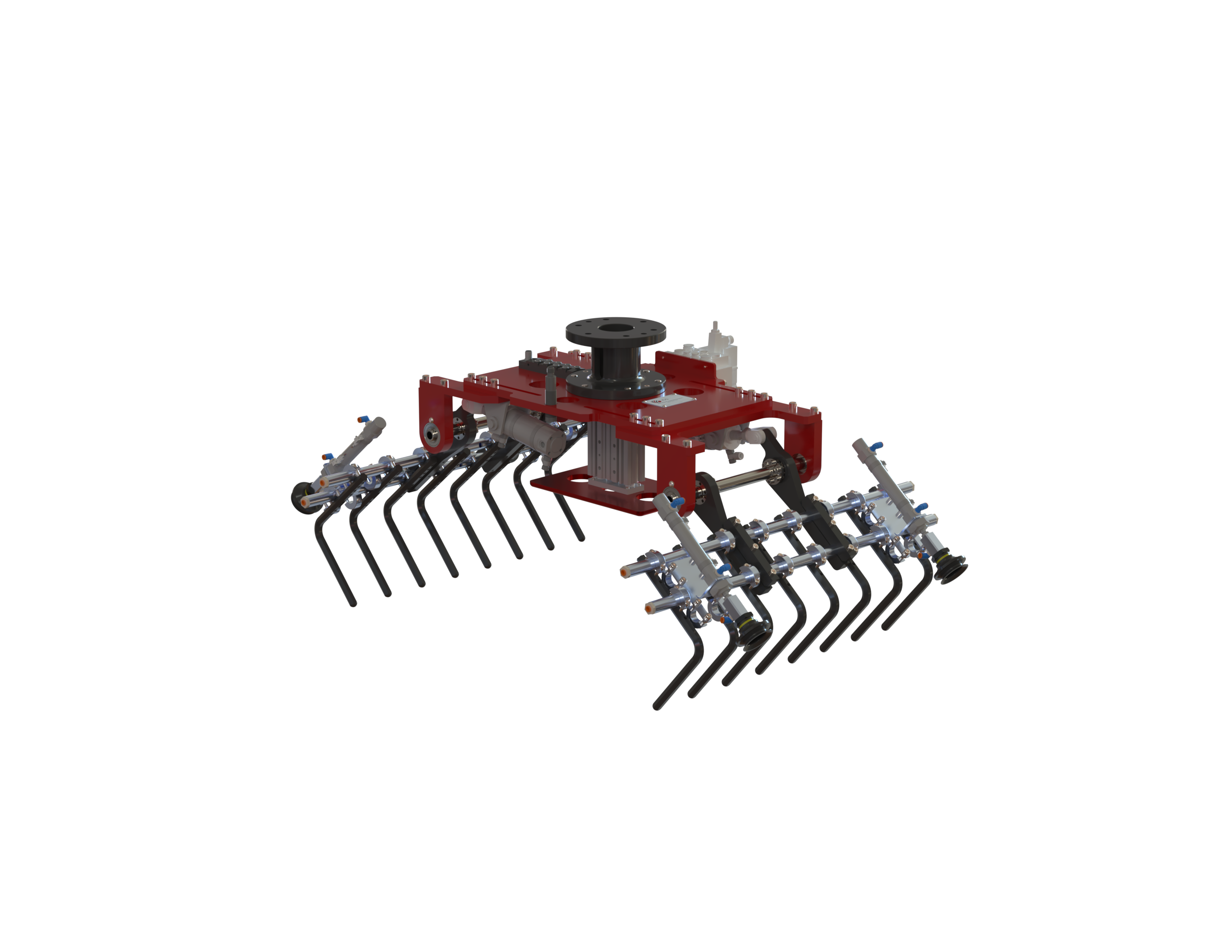

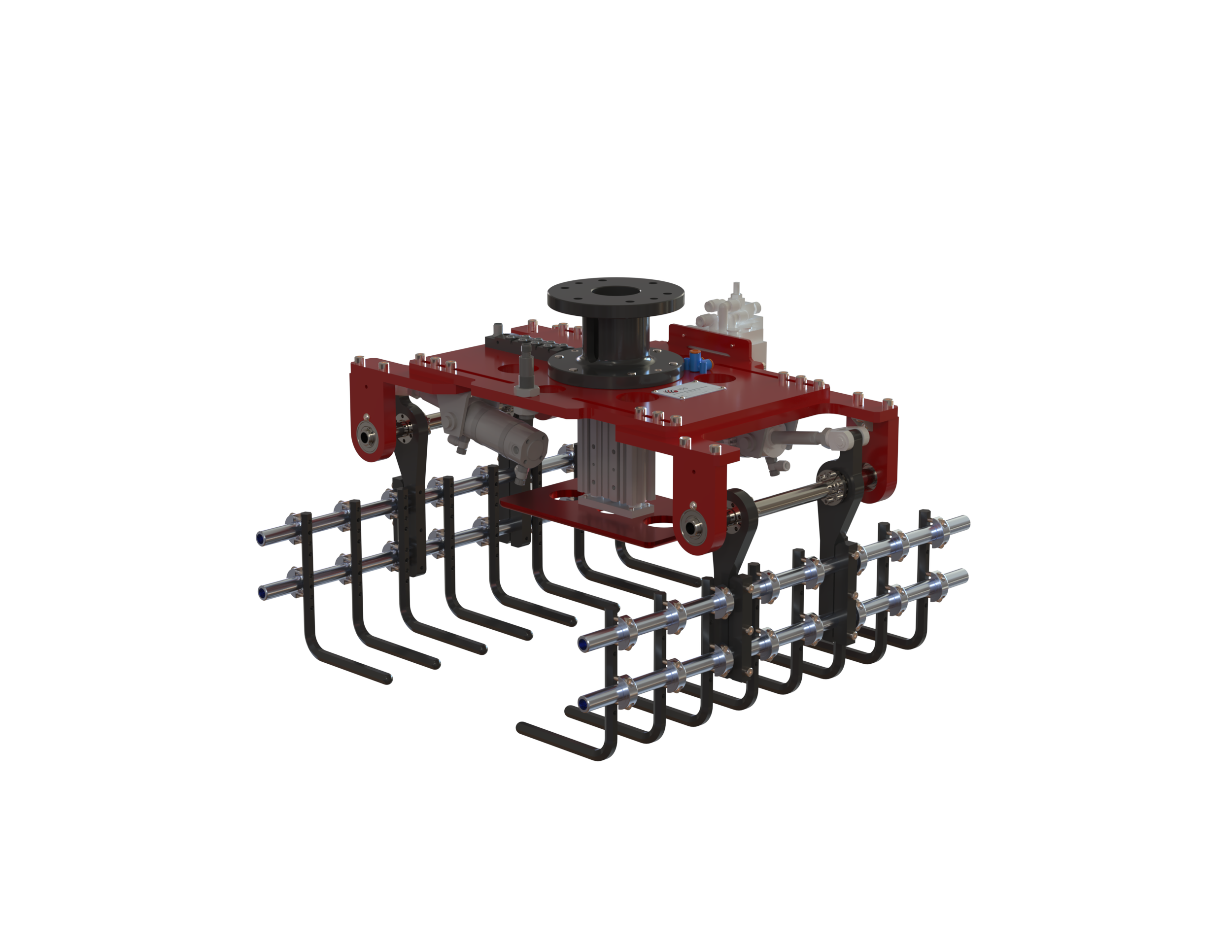

Introducing our newest and lightest bag gripper. Starting at just 24kg and having a payload of up to 50kg for the palletizing of various bags. Ideal for low frequency bag size changes, you can change the bag width from 295mm to 500mm in a matter of minutes with one tool. Standard bag clamp for better bag control during transport and part present sensor. Robot mounting configured to your requirements. Available option, retractable vacuum cups for slip sheet placement.
Robot mounting configured to your requirements
Adjustable bag width
Pneumatic hold down
76 mm finger pitch adjustable
Hard anodized aluminum fingers with adjustable pitch
PSS, pneumatic slip sheet
Customization
Tool weight = ~24 kg
Max. payload = 50 kg
