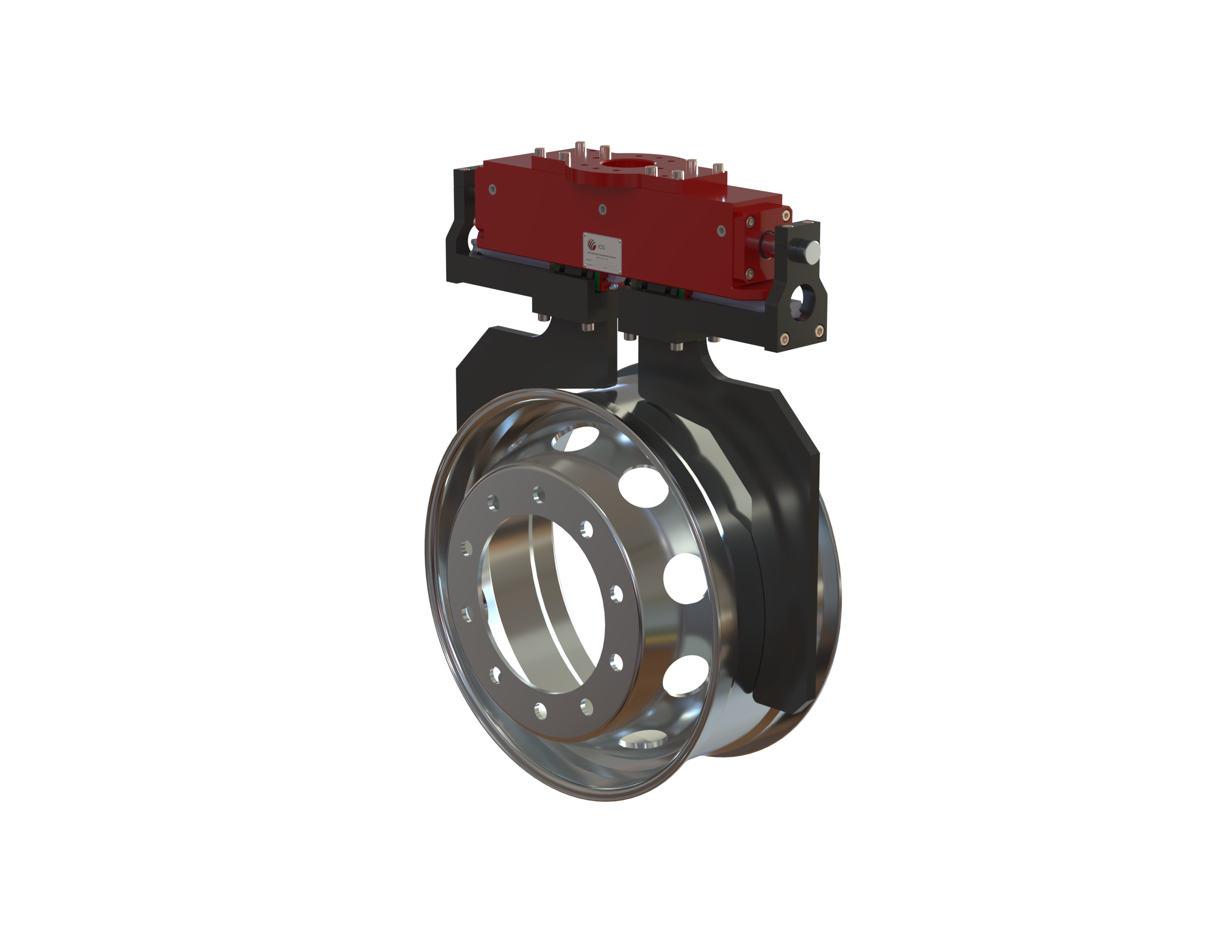

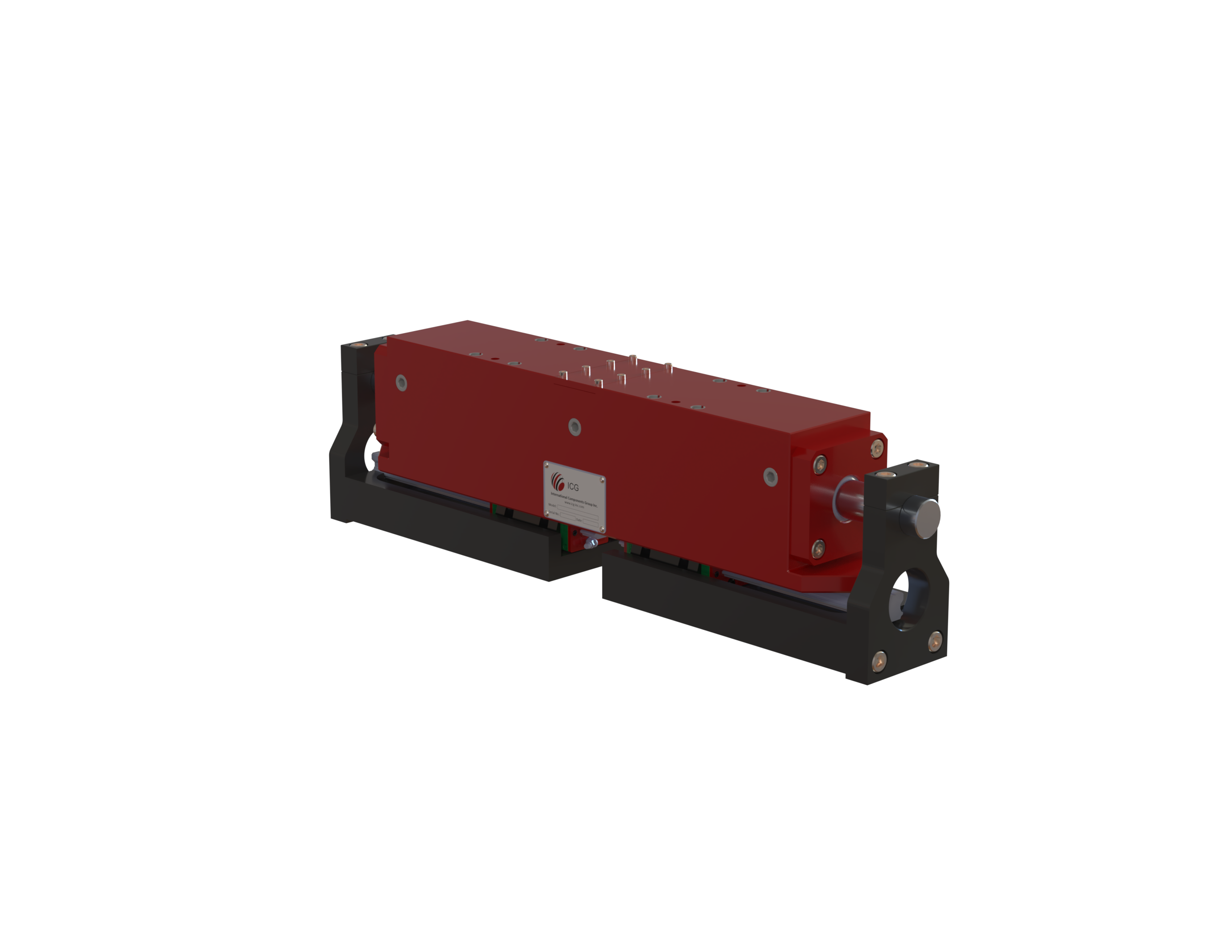

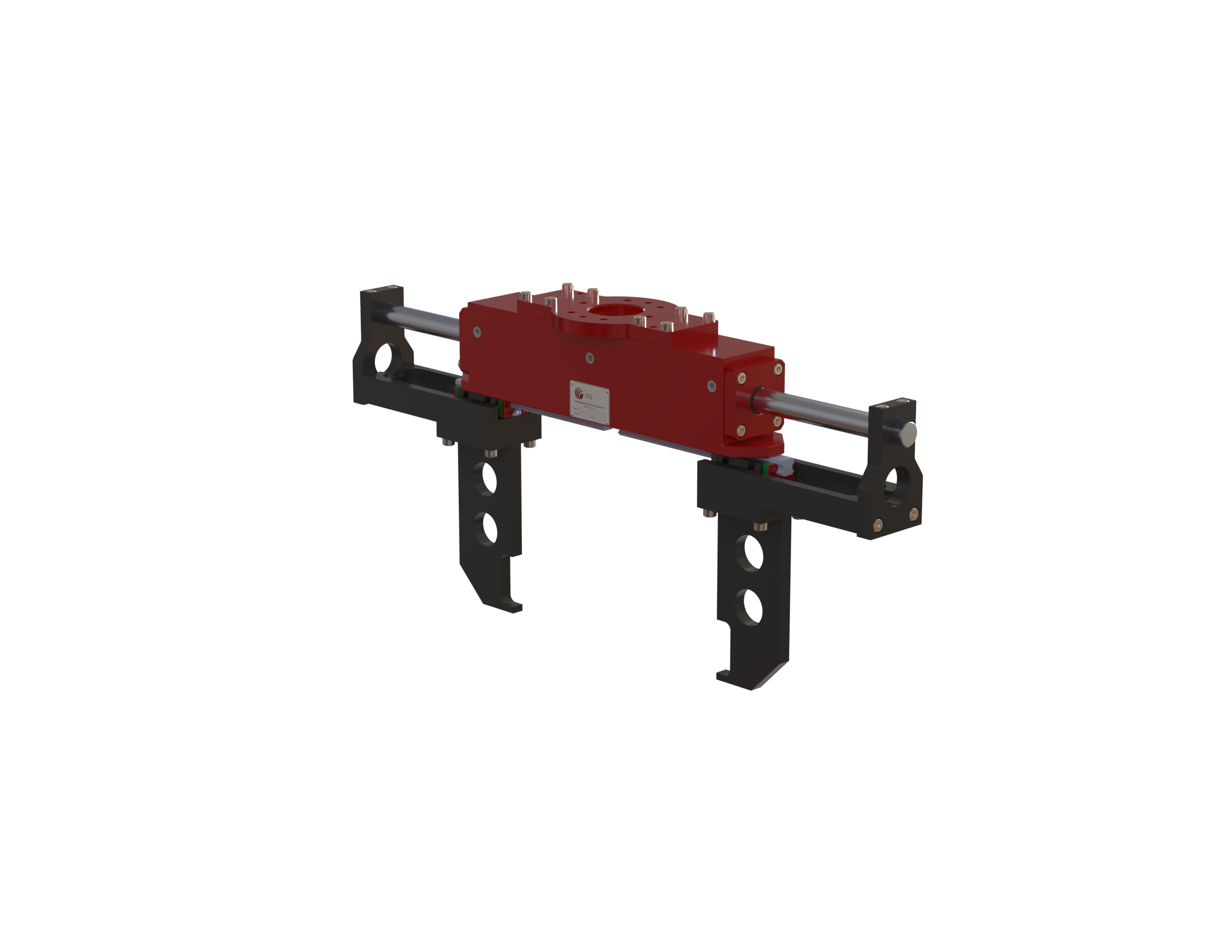

Designed for demanding industrial automation applications, our parallel robotic gripper provides reliable, high-force part handling with exceptional repeatability. Its rugged aluminum construction delivers long service life while maintaining a lightweight profile to maximize robot payload. Ideal for machine tending, assembly, welding and material handling applications, the gripper features precision-guided jaws, configurable finger mounting, and dependable pneumatic operation for fast, accurate, and repeatable performance in high-cycle production environments.
Mechanically coupled for synchronized movement
High load capability
3/8" NPT PORTS
Grip force with standard fingers - 3465 N @100psi
Full stroke of 350mm
Robot mount plate
Custom grippers
Valve manifold package
Tool weight = 32 kgs
